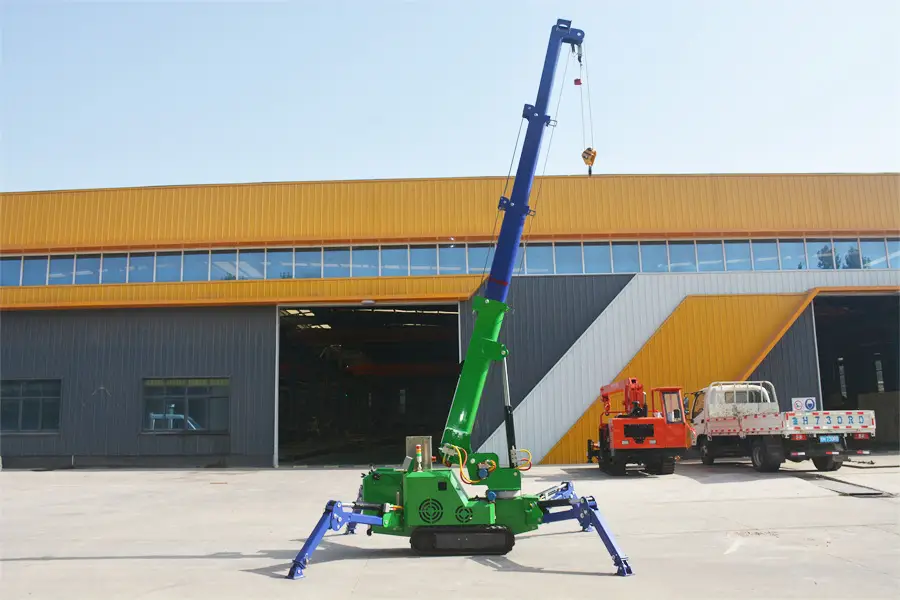

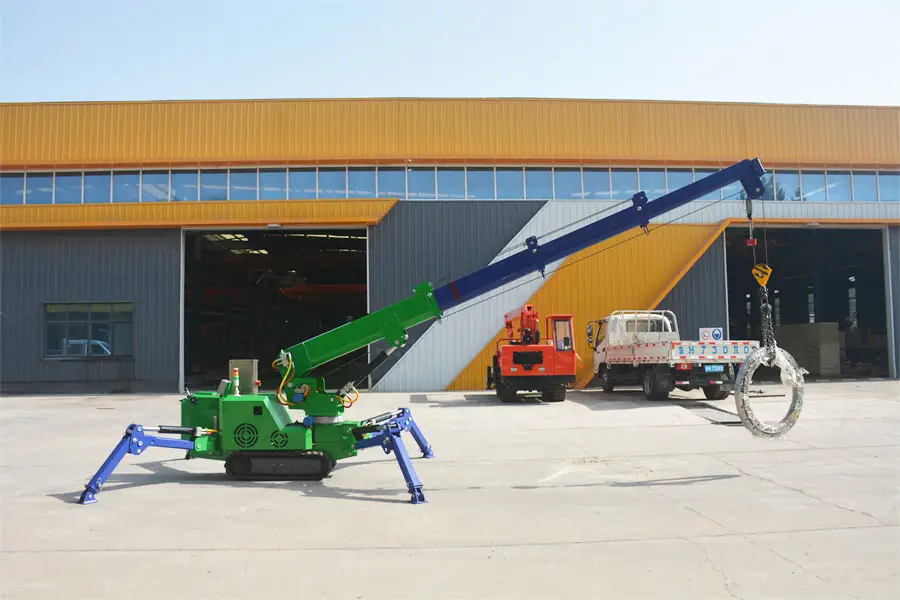

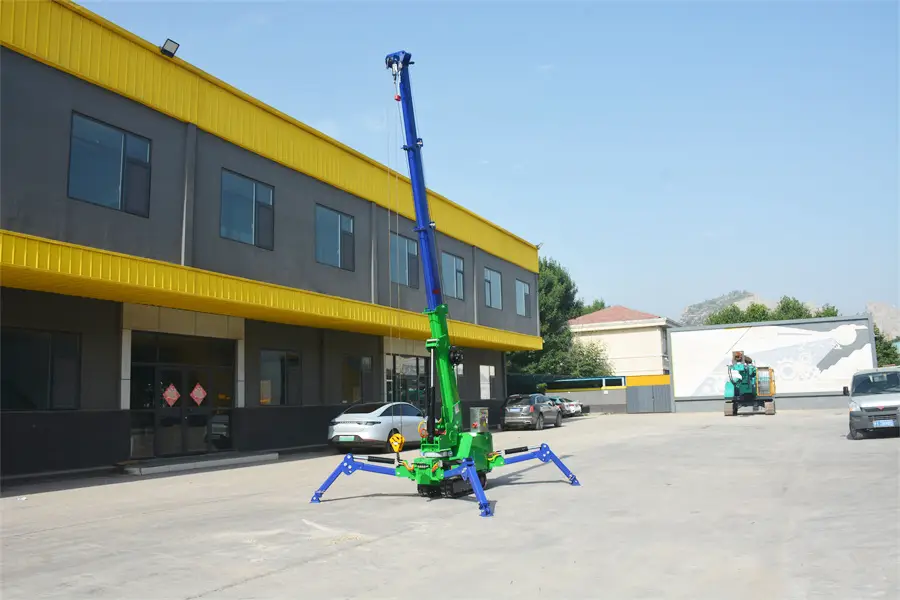

● Load Capacity: 1.5tons
● Lifting Height: 5.8m
● Max Operating Radius: 6m×0.4t
● Walking Mode: Hydraulic motor drive, two speed
● Walking Speed: 0-2.5km/h
● Climbing Ability: 20°(36%)
● Application:lifting heavy material such as metal, glass and stone slab
Mini Spider Crane Crawler sets it apart in the market with its intelligent design and remarkable cost-effectiveness. Its minimal footprint allows for effortless traversal through cramped room and tight spaces, where larger conventional cranes often fail to access. This distinctive quality significantly broadens their working scope, making them the best solution for complex indoor and outdoor workshops, parking lots, as well as high-rising edifices. Despite their nimble nature, Mini Spider Crane Crawler demonstrate remarkable lifting ability, effortlessly hoisting loads ranging from 1.5 tons to an impressive 18 tons with unprecedented precision and stability. The perfect integration of advanced hydraulic systems and intelligent control technologies ensures safe and reliable operations, even in harsh or demanding environments.
Key Advantages
The hanging basket of Mini Spider Crane Crawler can be used for high-altitude operations, achieving multiple uses with one machine. The material of the flying arm is made of manganese steel, which is lightweight but higher strength, can increase the working height and achieve carry-load operations; The legs are equipped with ground sensing devices, which can stretch four-legs with one button, making it intelligent and convenient.
Features
Mini Spider Crane Crawler is equipped with safety devices,such as torque converter, travel switch, boom amplitude safety device, limiter, anti-collision device, and valve block, etc. These safety devices ensures the safety and stability of the lifting operation through various methods such as real-time monitoring, restriction, protection, and buffering,and provide safe and efficient working conditions for staff.
Technical Parameters
| Model No. | ESC-15 | ESC-20 | ESC-30 | ESC-50 | ESC-80 | ESC-100 | ESC-120 | ESC-160 | |
| Load Capacity | 1.5tons | 2 tons | 3 tons | 5 tons | 8 tons | 10 tons | 12 ton | 16 tons | |
| Lifting Height | 5.8m | 6.8m | 10.05m | 16m | 18m | 21m | 24.5m | 24.5m | |
| Max Operating Radius | 6m×0.4t | 6m×0.4t | 8.6m×0.4t | 15.3m×0.4t | 16.5m×0.35t | 20m×0.2t | 23m×0.2t | 23m×0.2t | |
| Walking device | Walking Mode | Hydraulic motor drive, two speed | |||||||
| Walking Speed | 0-2.5km/h | 0-2.5km/h | 0-2.5km/h | 0-5.5km/h | 0-5.5km/h | 0-5.5km/h | 0-5.5km/h | 0-5.5km/h | |
| Climbing Ability | 20°(36%) | ||||||||
| Engine | Start Mode | Electric start | |||||||
| Startup Tempt. | -5°C~40°C | ||||||||
| Engine | AC Electric + Diesel Dual Power | ||||||||
| Battery Capacity | 12V/45Ah | 12V/45Ah | 12V/45Ah | 12V/45Ah | 12V/45Ah | 12V/45Ah | 12V/45Ah | 12V/45Ah | |
| Weight(KG) | 1200kg | 1500kg | 2600kg | 6300kg | 7600kg | 8200kg | 11500kg | 13500kg | |
| Vehicle Size(e( L*W*H) | 2.1*0.6*1.4m | 2.2* 0.95*1.65m | 3.4*0.95*1.65m | 4.5 *1.4 * 2.1m | 4.95*1.6*2.25m | 5.5*1.6*2.25m | 5.7*1.8* 2.4m | 6.5*2*2.4m | |
| 20ft Container Loading Qty | 5 sets | 3 sets | 2 sets | 1 set | 1 set | 1set | 1 set | 1set | |
Applications
Apart from used in indoor and underground warehouse, Mini Spider Crane Crawler is widely suitable for road repairs and bridge maintenance. Mini crawler cranes are used for road repairs and bridge maintenance projects in urban areas, offering precision and flexibility in confined spaces. Another scenario is installation of municipal facilities. They are also deployed for installing streetlights, traffic signs, and other municipal infrastructure, ensuring efficient and safe execution.
A: We are a professional manufacture , we have our own R&D team and sales team, we provide one-stop service.
A: Yes, offer us necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
A: Yes, we support mass production. We can support customization (one piece is enough), but we can’t provide free samples.
A: Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish Other customizable options
EOM’s team is online 24 hours a day to answer your questions. Reach out immediately to find the perfect spider cranes for your business.
