● Load Capacity: 5tons
● Lifting Height: 16m
● Max Operating Radius: 15.3m×0.4t
● Walking Mode: Hydraulic motor drive, two speed
● Walking Speed: 0-5.5km/h
● Climbing Ability: 20°(36%)
● Application:lifting heavy material such as metal, glass and stone slab
●5-section lifting arm

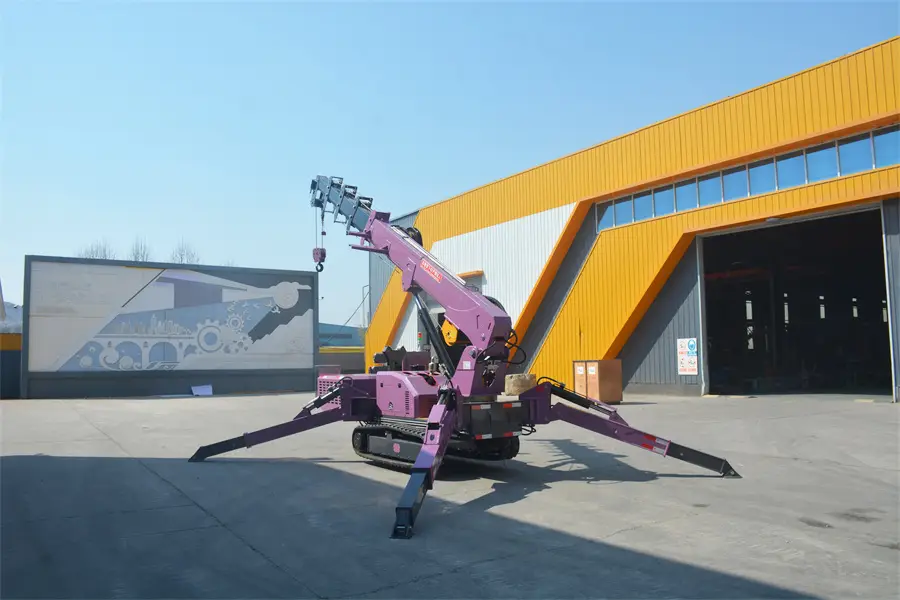

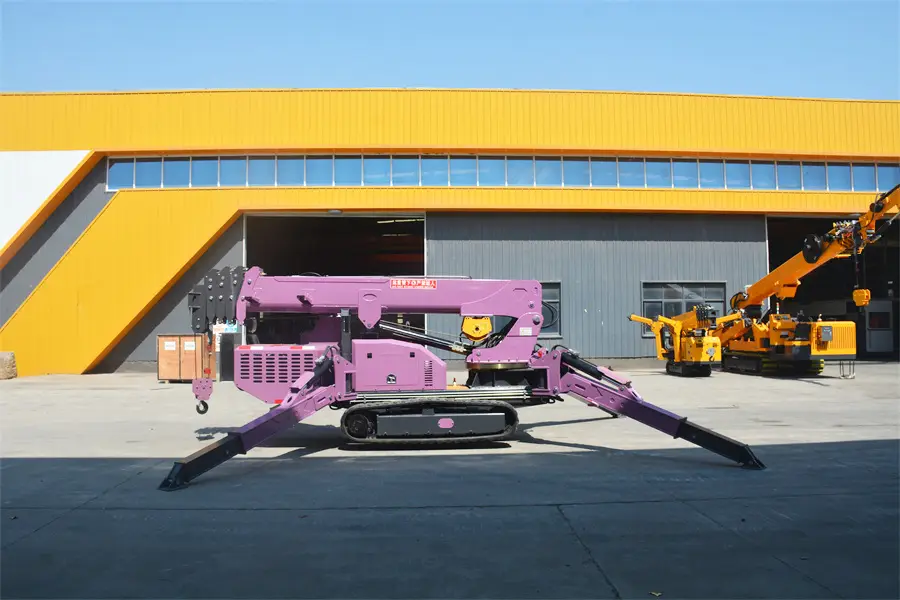

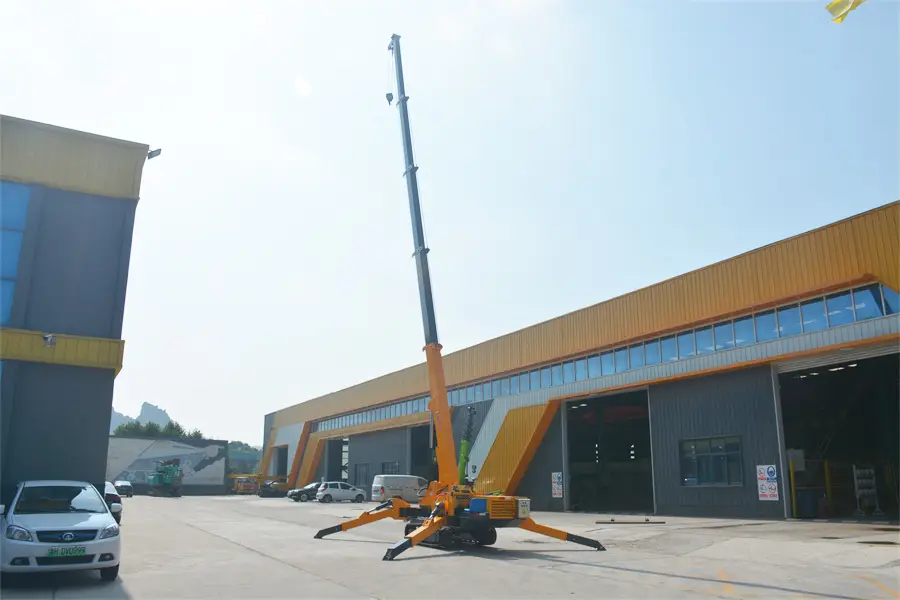

Spider Crane 5 ton is versatile and can be used in construction, maintenance and many other industries. It can work in a limited space, making it the best choice for construction projects with limited space.
Spider Crane 5 ton is compact and has a high lifting capacity of 18 tons. It can lift heavy objects and rotate 360° in the working area. In addition, Spider Crane 5 ton is simple and easy to operate, which improves the efficiency of work on the construction site. In short, for industries that require simplified processes and heavy lifting, the spider crane with its huge lifting capacity and compact design is an ideal solution.
Features and Advantages
The differences between our Spider Crane 5 ton and other products:
1. Shanghai manganese steel with high yield strength.
2. The bearings are mounted on a long-life ball bearing.
3. The cold-valve cylinder is forged.
4. The hydraulic system was specially designed by Beijing Huade engineers.
5. The outer surface of the oil tank is coated with a wear-resistant layer.
Technical Parameters
| Model No. | ESC-15 | ESC-20 | ESC-30 | ESC-50 | ESC-80 | ESC-100 | ESC-120 | ESC-160 | |
| Load Capacity | 1.5tons | 2 tons | 3 tons | 5 tons | 8 tons | 10 tons | 12 ton | 16 tons | |
| Lifting Height | 5.8m | 6.8m | 10.05m | 16m | 18m | 21m | 24.5m | 24.5m | |
| Max Operating Radius | 6m×0.4t | 6m×0.4t | 8.6m×0.4t | 15.3m×0.4t | 16.5m×0.35t | 20m×0.2t | 23m×0.2t | 23m×0.2t | |
| Walking device | Walking Mode | Hydraulic motor drive, two speed | |||||||
| Walking Speed | 0-2.5km/h | 0-2.5km/h | 0-2.5km/h | 0-5.5km/h | 0-5.5km/h | 0-5.5km/h | 0-5.5km/h | 0-5.5km/h | |
| Climbing Ability | 20°(36%) | ||||||||
| Engine | Start Mode | Electric start | |||||||
| Startup Tempt. | -5°C~40°C | ||||||||
| Engine | AC Electric + Diesel Dual Power | ||||||||
| Battery Capacity | 12V/45Ah | 12V/45Ah | 12V/45Ah | 12V/45Ah | 12V/45Ah | 12V/45Ah | 12V/45Ah | 12V/45Ah | |
| Weight(KG) | 1200kg | 1500kg | 2600kg | 6300kg | 7600kg | 8200kg | 11500kg | 13500kg | |
| Vehicle Size(e( L*W*H) | 2.1*0.6*1.4m | 2.2* 0.95*1.65m | 3.4*0.95*1.65m | 4.5 *1.4 * 2.1m | 4.95*1.6*2.25m | 5.5*1.6*2.25m | 5.7*1.8* 2.4m | 6.5*2*2.4m | |
| 20ft Container Loading Qty | 5 sets | 3 sets | 2 sets | 1 set | 1 set | 1set | 1 set | 1set | |
A: We are a professional manufacture , we have our own R&D team and sales team, we provide one-stop service.
A: Yes, offer us necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
A: Yes, we support mass production. We can support customization (one piece is enough), but we can’t provide free samples.
A: Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish Other customizable options
EOM’s team is online 24 hours a day to answer your questions. Reach out immediately to find the perfect spider cranes for your business.
